This machine is ideal to manufacture unit soles with welt & insert-type soles.
This machine uses an extrusion injection system which delivers smooth and dent-free unit soles.
The machine is equipped with a bottom sliding plate which provide easier access to mould for application of welt or insert.
Sliding system for faster mounting of moulds.
| Specification | Units | Technica-SL 1 | Technica-SL 2 |
|---|---|---|---|
| Screw Diameter | MM | 65 | 65 |
| Screw Speed | RPM | 220/3 Speed Gear Box | 220/3 Speed Gear Box |
| Heating Load | KW | 3.2 | 6.4 |
| Electrical Motors | KW | 17 | 28 |
| TotalConnected Load | KW | 20.2 | 34.4 |
| Clamping Force | Ton | 50/70/100/125 | 50/70/100/125 |
| Production Capacity | Pair/Hr | 30-120 | 60-220 |
| Standard Mould Size | MM | 300X400 | 300X400 |
| Net Weight | Kgs | 1800 | 3700 |
| Machine Dimensions (WxLxH) | MM | 760x2800x2400 | 1524x2800x2400 |
| Capacity of OilTank | Ltr | 250 | 350 |

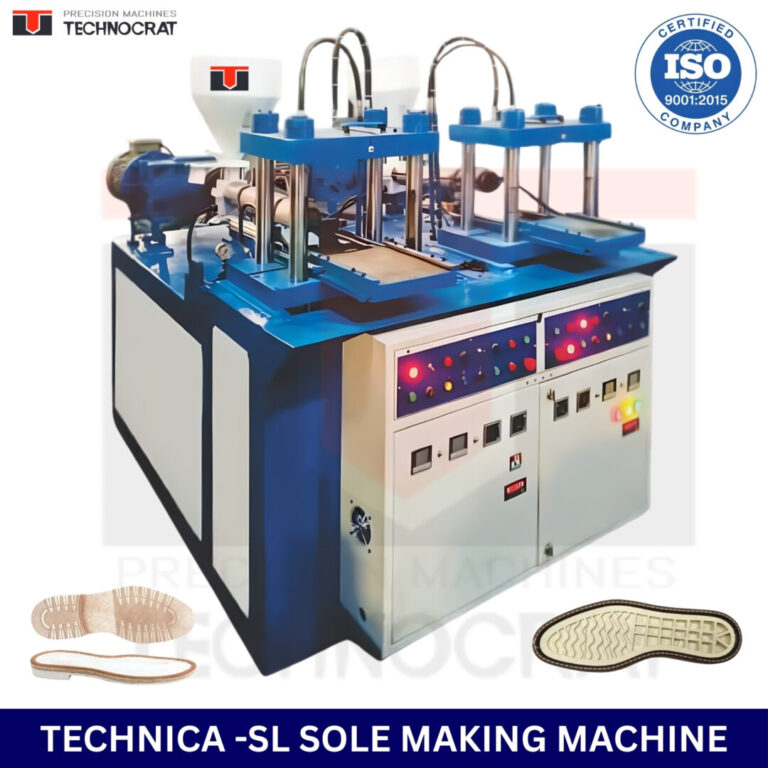

The TECHNICA-SL PVC TPR TPU Sole Moulding Machine is engineered by Technocrat Mouldings to deliver high-precision, dent-free soles with maximum energy efficiency. This versatile machine is perfect for manufacturers looking to optimize production while reducing power costs by up to 66%.
