Triple-Colour Sole
India's first triple-colour sole machine
TC-100
Triple Colour Sole Moulding Machine
India's first triple-colour sole moulding machine — engineered to slash power, manpower and material waste while producing premium multi-colour soles.
Materials
TPRPVCTPU
Variants
Single Station · Double Station

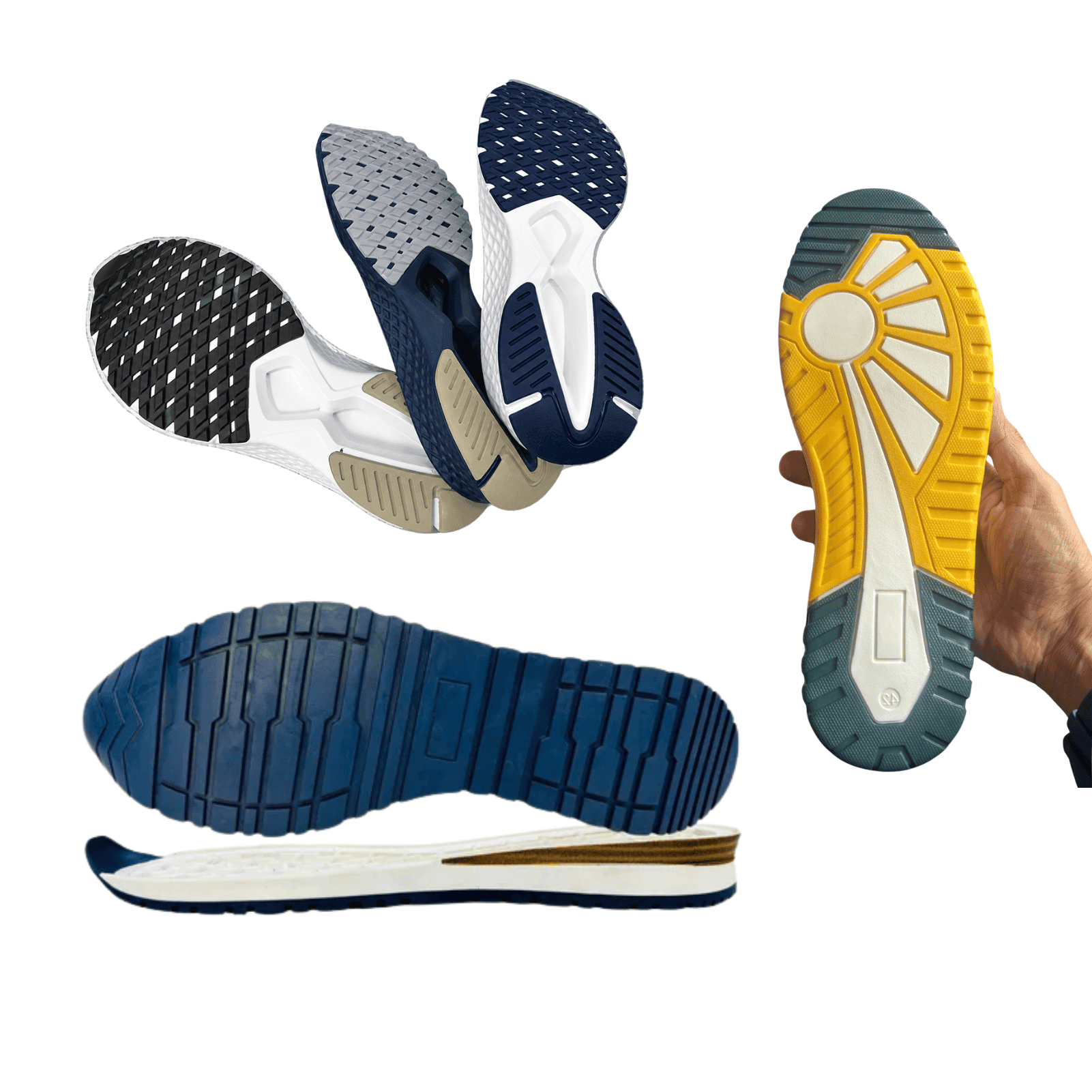

What this machine produces
Watch it run
Key features
Recover machine cost within 1 year (T&C apply)
⅓ the power consumption of a rotary machine
Single operator — major manpower saving vs rotary
Compact footprint saves floor space
Very low material wastage
Power-saving frequency drive
Power-saving frequency drive included
Full specifications
Technical specifications for the TC-100 across available variants.
| Specification | Unit | Single StationTC-100-1 | Double StationTC-100-2 |
|---|---|---|---|
| Screw Dia 1st, 2nd, 3rd Colour | MM | 60 | 60 |
| Screw Speed | RPM | 100-300 | 100-300 |
| Heating Load | KW | 6.5 | 13 |
| Electrical Motor | KW | 40.75 | 73.5 |
| Total Connected Load | KW | 47.25 | 86.5 |
| Clamping Force | Ton | 100 | 100 |
| Production Capacity | Pair/Hour | 20-70 | 40-100 |
| Standard Mould Size | MM | 300X400 | 300X400 |
| Net Weight | KG | 4000 | 7500 |
| Machine Dimensions (WxLxH) | MM | 1800(W)X3350(L)X2800(H) | 3000(W)X3350(L)X2800(H) |
| Ejector Force | Ton | 0.5 | 0.5 |
| Oil Capacity | LTR | 300 | 420 |
Specifications subject to change without notice. Custom configurations available on request.
