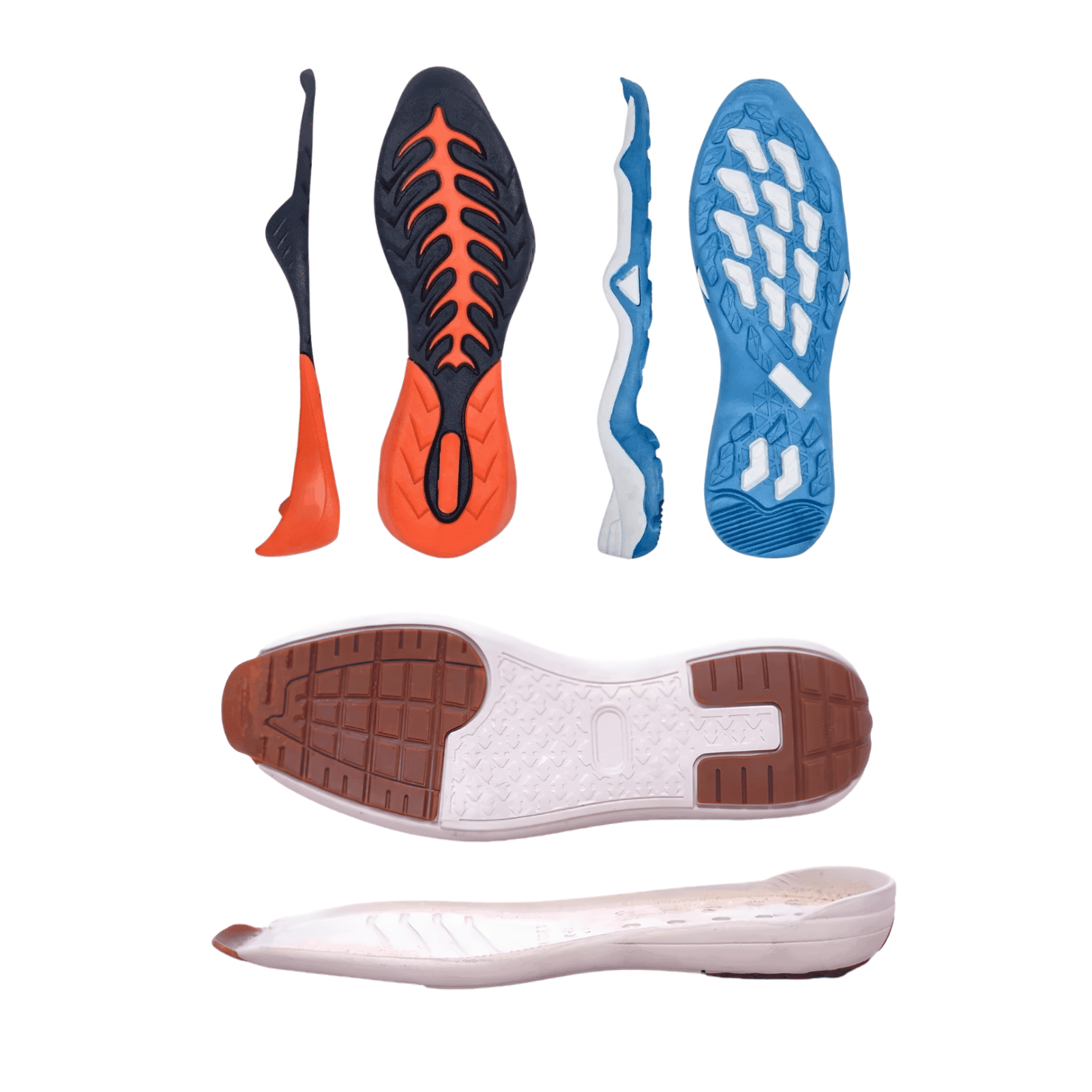

What this machine produces
Watch it run
Key features
Suitable for TPR, PVC, TPU
Power-saving frequency drive
Less material wastage than rotary machines
Easy colour & size management
Very low power consumption
Single operator — saves manpower vs rotary
Aluminium moulds usable; can run single-colour
Low wear & tear · Ejector · Safety shutter
Power-saving frequency drive included
Full specifications
Technical specifications for the TM-100 across available variants.
| Specification | Unit | Single StationTM-100-1 | Double StationTM-100-2 |
|---|---|---|---|
| Screw Dia 1st Colour | MM | 65 | 65 |
| Screw Dia 2nd Colour | MM | 65 | 65 |
| Screw Speed | RPM | 100-300 | 100-300 |
| Heating Load | KW | 6.4 | 12.8 |
| Electrical Motor | KW | 29.5 | 52.2 |
| Total Connected Load | KW | 35.9 | 65 |
| Clamping Force | Ton | 100 | 100 |
| Production Capacity | Pair/Hour | 20-70 | 40-140 |
| Standard Mould Size | MM | 300X400 | 300X400 |
| Net Weight | KG | 3800 | 6800 |
| Machine Dimensions (WxLxH) | MM | 1600(W)X3350(L)X2800(H) | 2500(W)X3350(L)X2800(H) |
| Ejector Force | Ton | 0.5 | 0.5 |
| Oil Capacity | LTR | 210 | 420 |
Specifications subject to change without notice. Custom configurations available on request.
