TechRo DLX
Welt, Insert & Veneer Sole Moulding Machine
Manufactures welt, insert and veneer-type soles. Sliding and rotational plates make welt/insert placement effortless. Equally suited to welt insert, veneer and book winding sole designs.

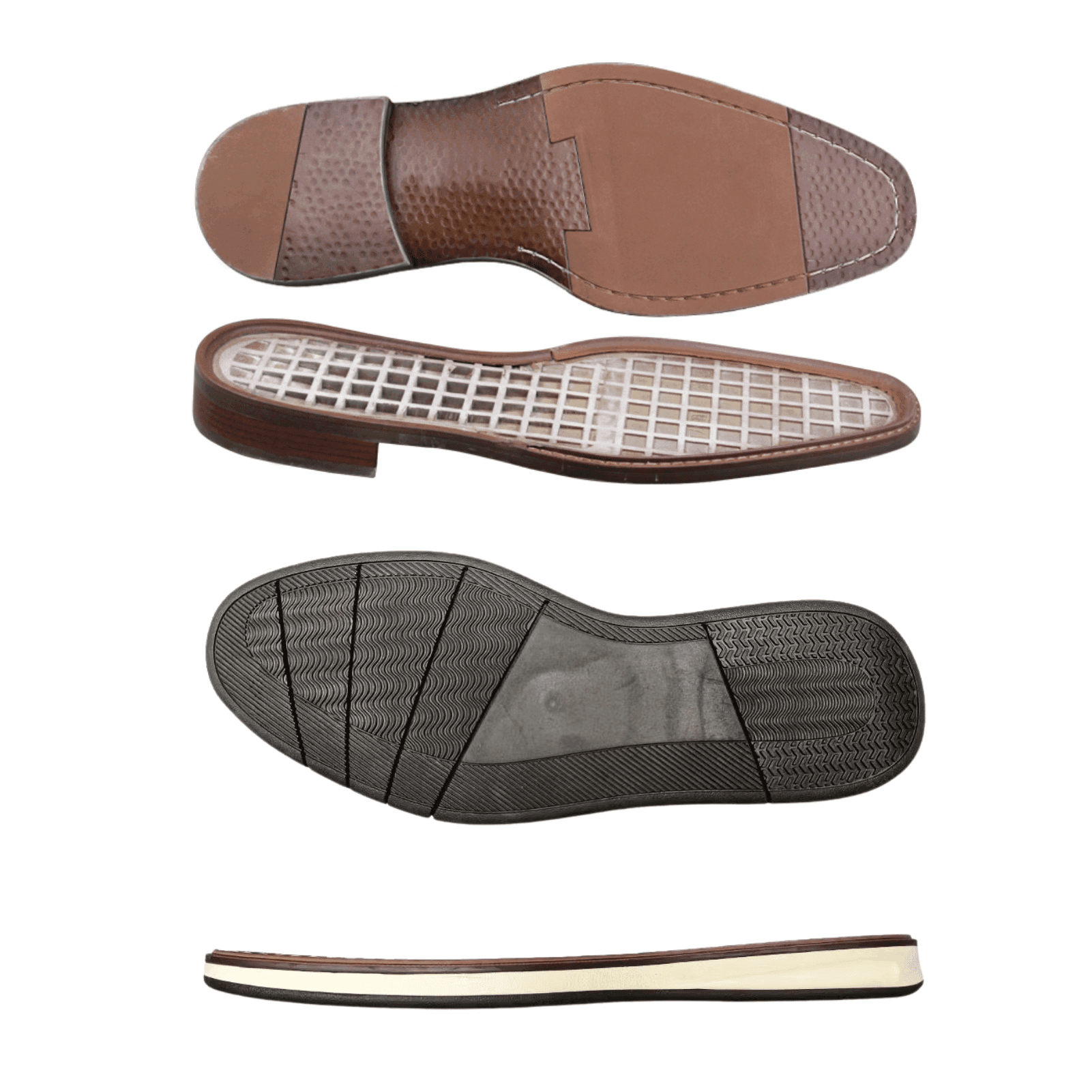

What this machine produces
Watch it run
Key features
Full specifications
Technical specifications for the TechRo DLX across available variants.
| Specification | Unit | Single StationTECHRO DLX-1 | Double StationTECHRO DLX-2 |
|---|---|---|---|
| Screw Diameter | MM | 65 | 65 |
| Screw Speed | RPM | 100-300 | 100-300 |
| Heating Load | KW | 3.2 | 6.4 |
| Electrical Motor | KW | 18.5 | 29.5 |
| Total Connected Load | KW | 21.7 | 35.9 |
| Clamping Force | Ton | 100 | 100 |
| Production Capacity | Pair/Hr | 30-120 | 60-220 |
| Standard Mould Size | MM | 300x400 | 300x400 |
| Net Weight | KGS | 3000 | 6000 |
| Machine Dimensions (WxLxH) | MM | 1000x3350x2300 | 2000x3350x2300 |
| Capacity of Oil Tank | Ltrs | 250 | 420 |
Specifications subject to change without notice. Custom configurations available on request.
