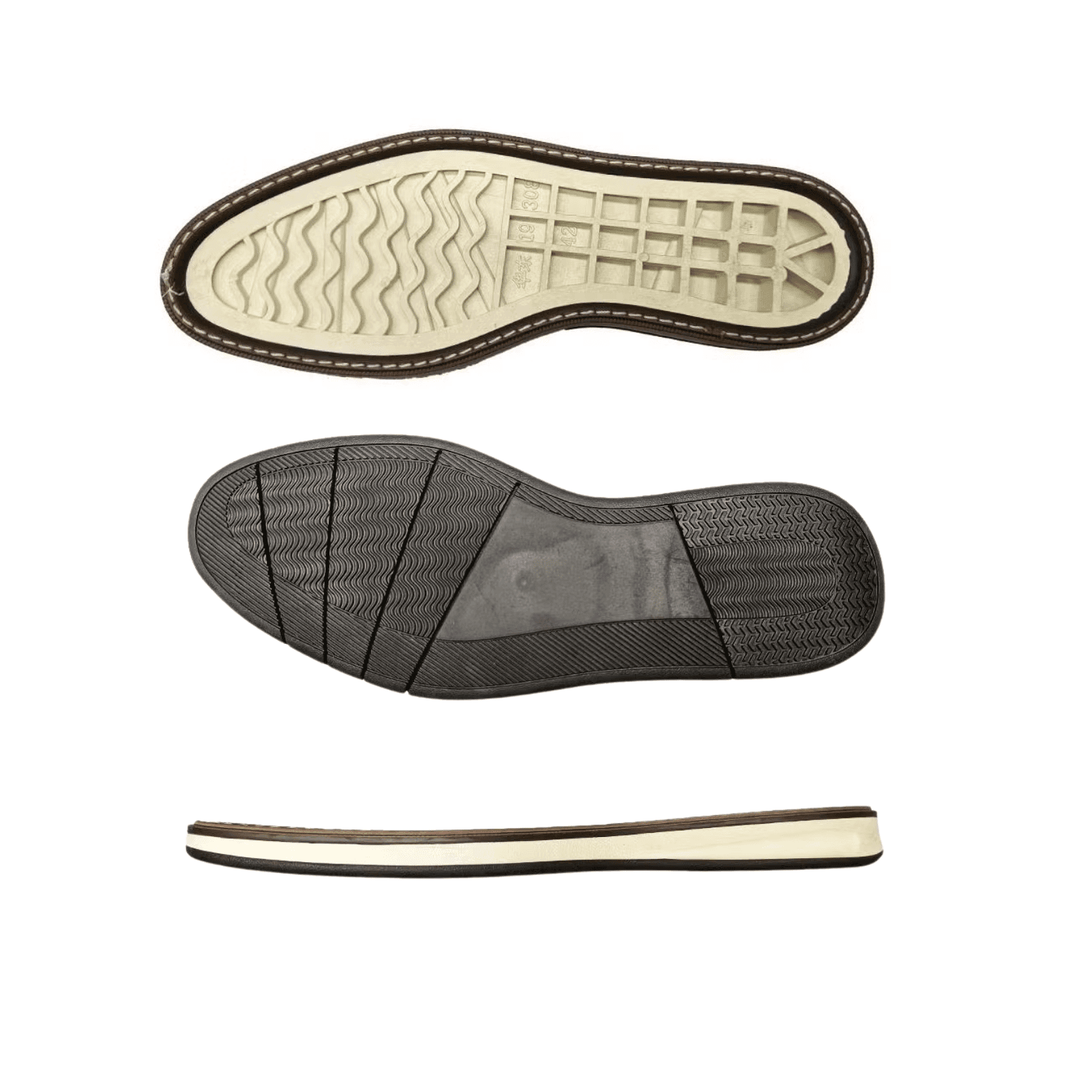

What this machine produces

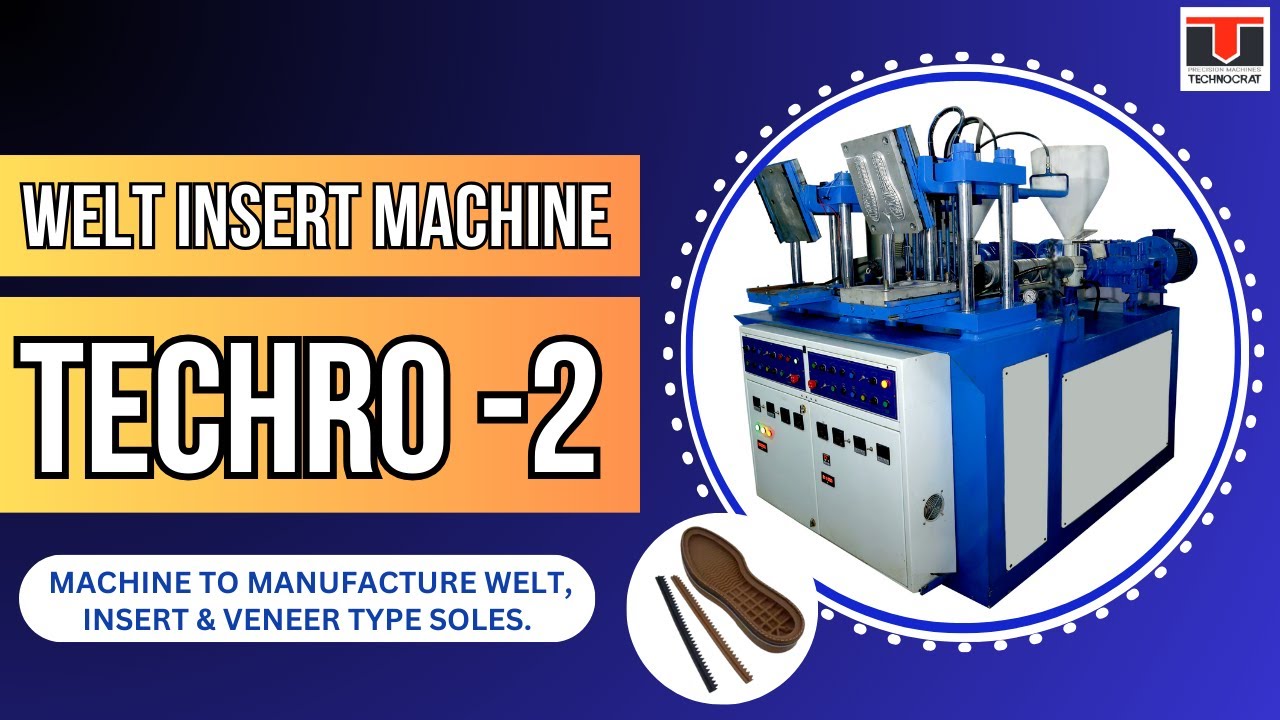

Watch it run
Key features
Sliding & rotational plates for easy welt/insert access
Compact, easily accessible layout
Sliding system for faster mould mounting
Book winding mechanism
TECHROEJ variant is also fitted with bottom ejectors
Full specifications
Technical specifications for the TechRo across available variants.
| Specification | Unit | Single StationTECHRO-1 | Double StationTECHRO-2 |
|---|---|---|---|
| Screw Diameter | MM | 65 | 65 |
| Screw Speed | RPM | 220 | 220 |
| Heating Load | KW | 3.2 | 6.4 |
| Electrical Motor | KW | 17 | 28 |
| Total Connected Load | KW | 20.2 | 34.4 |
| Clamping Force | Ton | 60/100 | 60/100 |
| Production Capacity | Pair/Hr | 30-120 | 60-220 |
| Standard Mould Size | MM | 300x400 | 300x400 |
| Net Weight | KGS | 1800 | 3700 |
| Machine Dimensions (WxLxH) | MM | 750x3350x2300 | 1550x3350x2300 |
| Capacity of Oil Tank | Ltrs | 250 | 420 |
Specifications subject to change without notice. Custom configurations available on request.
