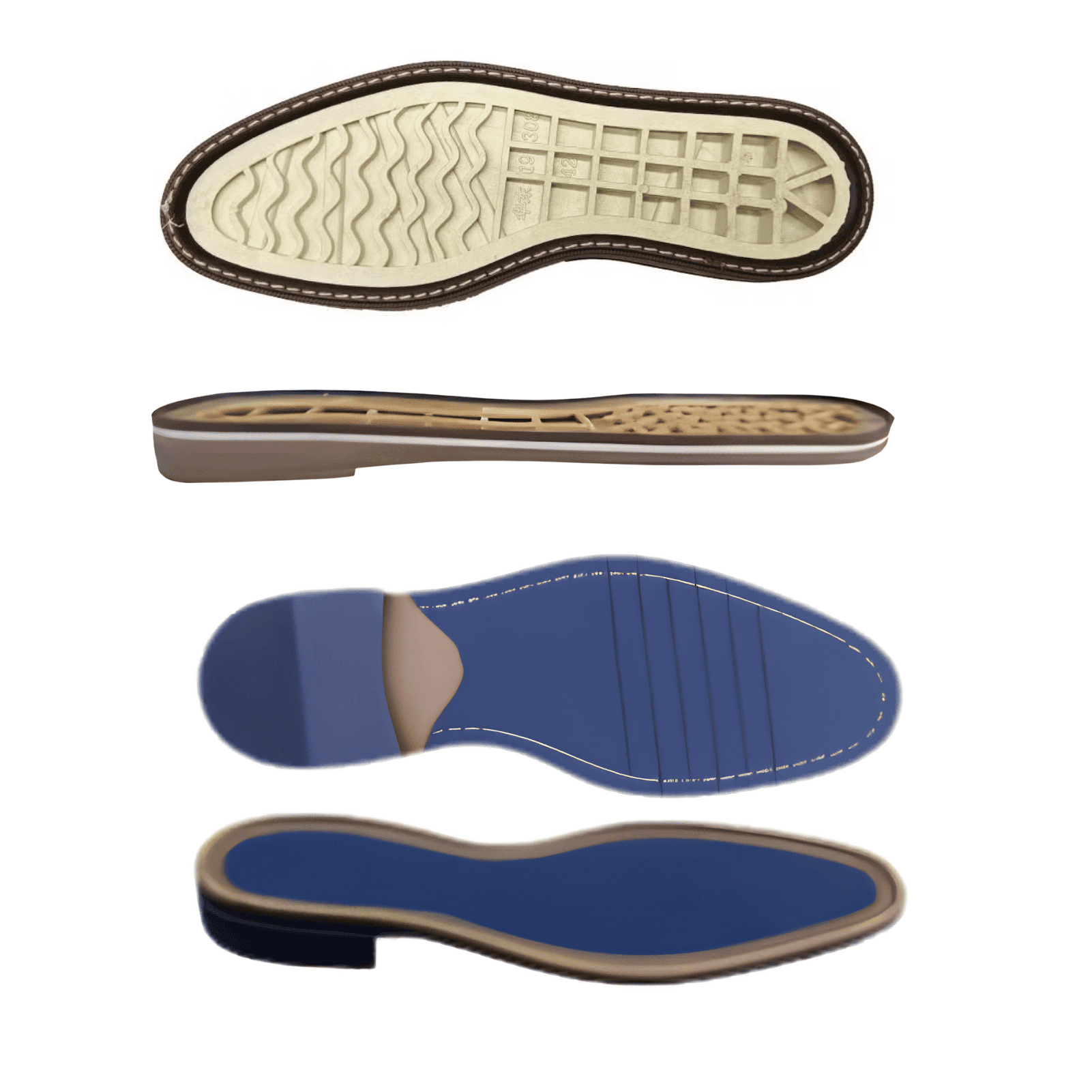

What this machine produces
Watch it run
Key features
Extrusion injection — smooth, dent-free soles
Bottom sliding plate for easy welt/insert access
Sliding system for faster mould mounting
Full specifications
Technical specifications for the Technica-SL across available variants.
| Specification | Unit | Single StationTechnica-SL 1 | Double StationTechnica-SL 2 |
|---|---|---|---|
| Screw Diameter | MM | 65 | 65 |
| Screw Speed | RPM | 220 | 220 |
| Heating Load | KW | 3.2 | 6.4 |
| Electrical Motor | KW | 17 | 28 |
| Total Connected Load | KW | 20.2 | 34.4 |
| Clamping Force | Ton | 60/100 | 60/100 |
| Production Capacity | Pair/Hr | 30-120 | 60-220 |
| Standard Mould Size | MM | 300x400 | 300x400 |
| Net Weight | KGS | 1800 | 3700 |
| Machine Dimensions (WxLxH) | MM | 760x3350x2400 | 1524x3350x2400 |
| Capacity of Oil Tank | Ltrs | 250 | 420 |
Specifications subject to change without notice. Custom configurations available on request.
