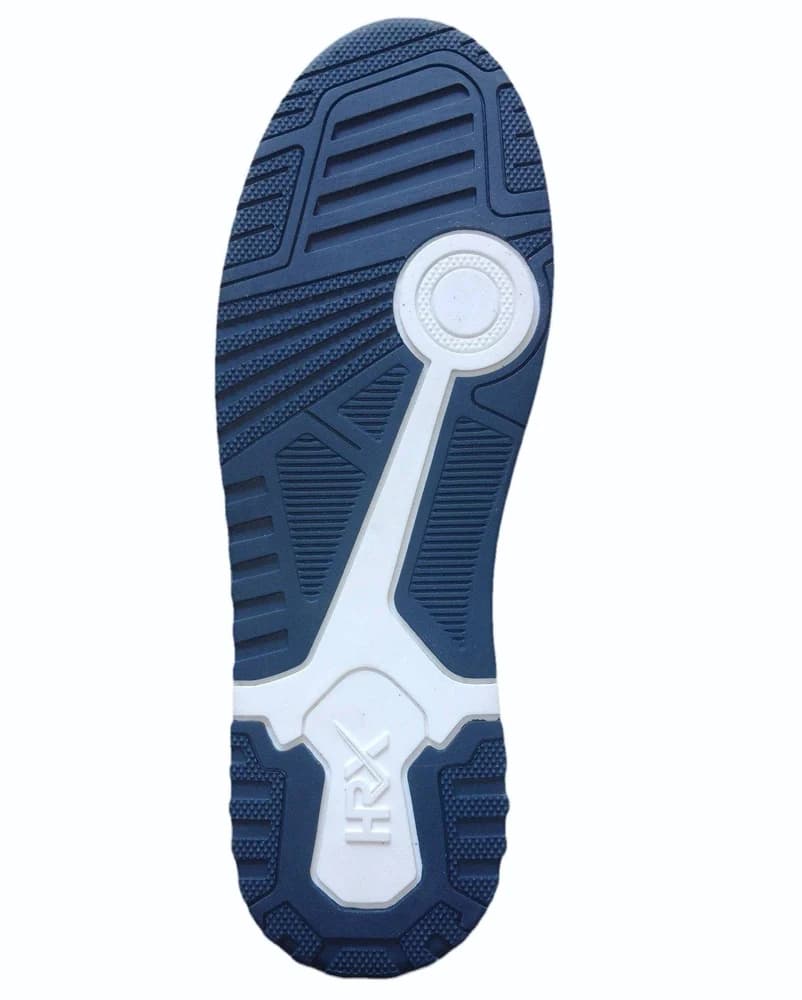

What this machine produces
Key features
Suitable for one-colour and two-colour sole manufacturing
Compatible with PVC, TPR and TPU materials
Supports foam and non-foam sole production
Hydraulic system designed for stable pressure and efficient operation
Production capacity up to approximately 150 pairs per hour
Full specifications
Technical specifications for the TechROT-80 .
| Specification | Unit | TECHROT 80DY-2220A |
|---|---|---|
| Machine Model | DY-2220A | |
| Work Station | Station | 20 |
| Injecting Screw Diameter | mm | ɸ75 / ɸ65 |
| Max. Injecting Capacity | cm3/shot | 880 / 660 |
| Clamping Force | ton | 55 |
| Max. Injecting Pressure | kg/cm2 | 660 / 890 |
| Production Capacity | Pair/h | 150 |
| Mould Dimension | mm | 500 x 320 x 250 |
| Total Power | kw | 60 |
| Machine Dimension (LxWxH) | m | 7.5 x 5.8 x 2.2 |
| Machine Weight | ton | 12 |
| Oil Capacity | L | 630 x 2 |
Specifications subject to change without notice. Custom configurations available on request.
