TECHROT 20
Rotary Air-Blowing Injection Moulding — 20 Station
20-station rotary air-blowing injection machine for PVC foaming and air-blown soles — shoes, slippers and sandals — with up to 30% electricity saving on the servo-motor option.

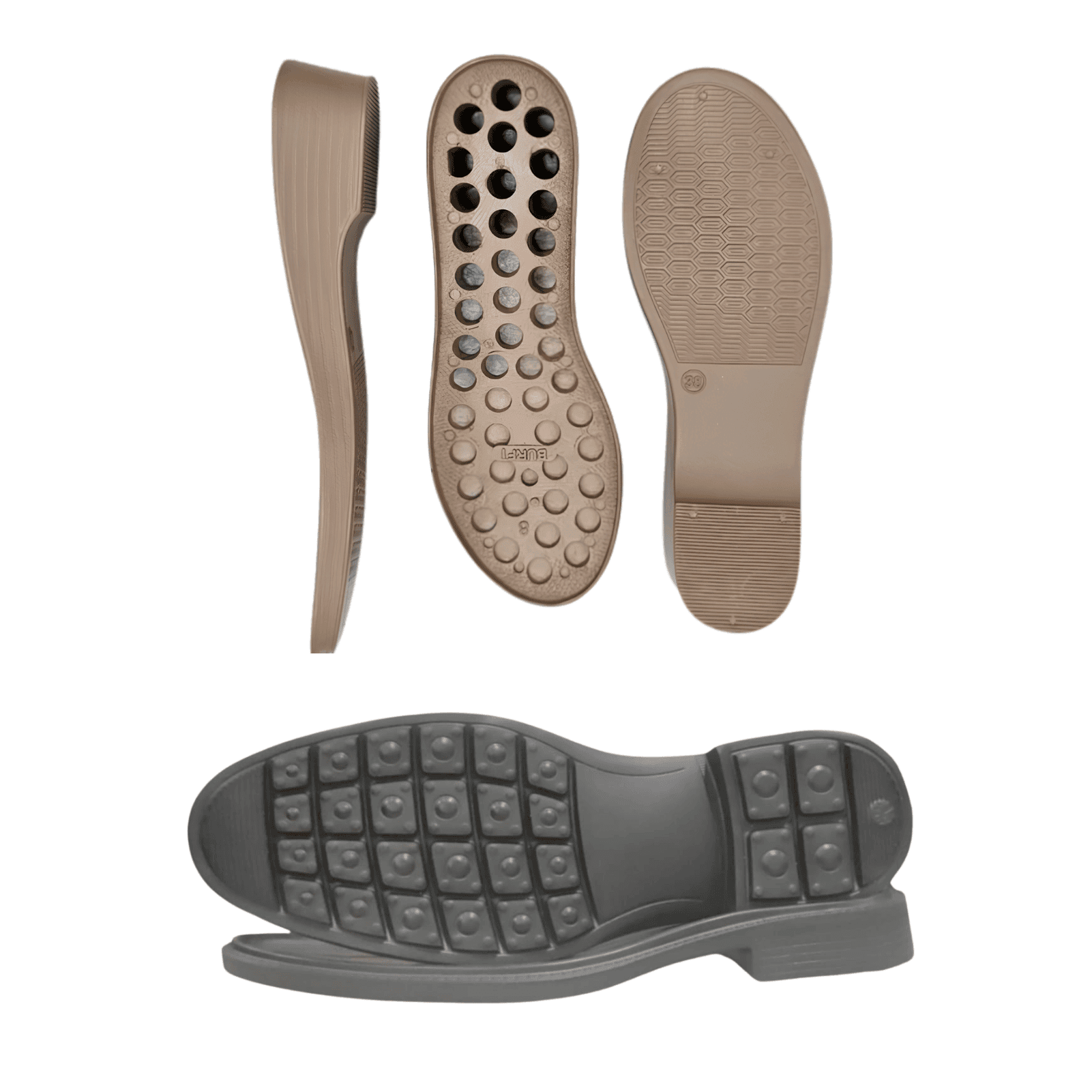

What this machine produces

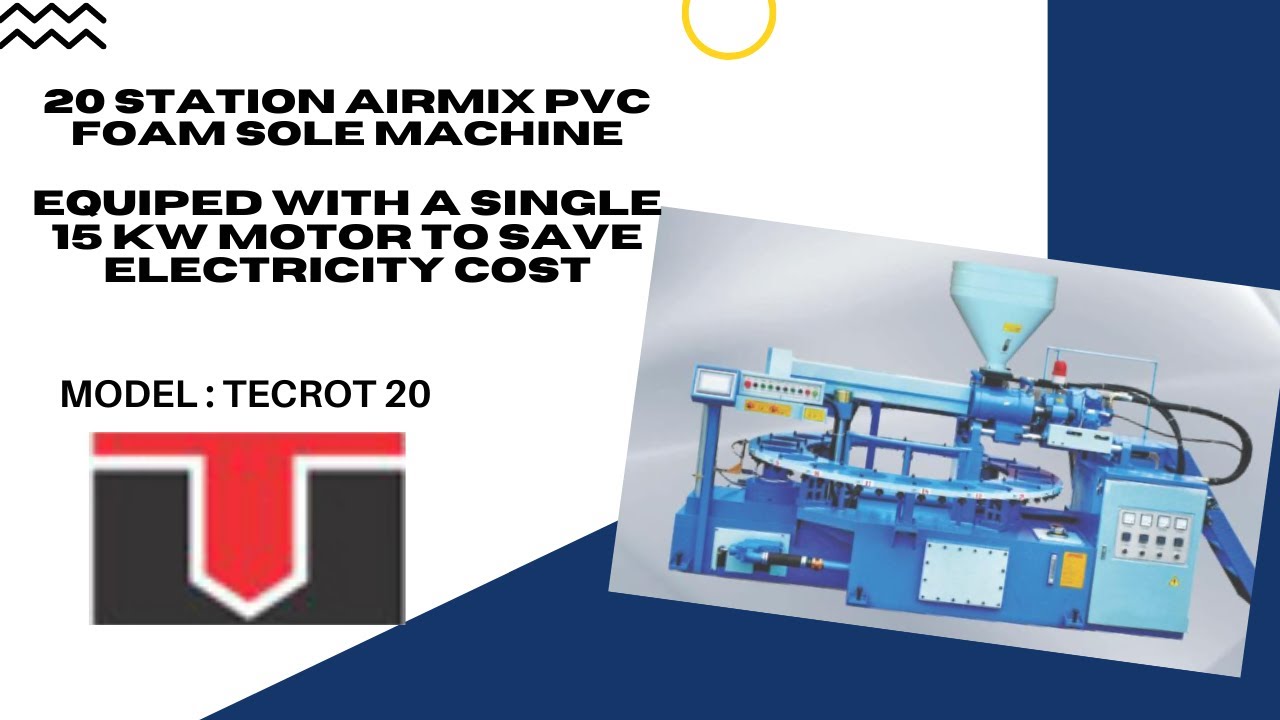

Watch it run
Key features
Full specifications
Technical specifications for the TECHROT 20 .
| Specification | Unit | 20 StationTechRot-20 |
|---|---|---|
| Work Station | Station | 20 |
| Injecting Screw Diameter | Mm | 60 |
| Max. Injecting Capacity | Cm3/Shot | 550 |
| Clamping Force | Ton | 45 |
| Max. Injecting Pressure | Kg/Cm2 | 890 |
| Productivity Per Hour | Pair/h | 130-180 |
| Mould Dimension | Mm | 480x320x300 |
| Total Power | Kw | 21 |
| Machine Dimensions (LxWxH) | M | 3.6x2.3x2.2 |
| Machine Weight | Ton | 5 |
| Oil Capacity | L | 420 |
Specifications subject to change without notice. Custom configurations available on request.
