TGB

PVC / TPE Double Colour Gumboot & Rain Boot Machine

Fully automatic PVC/TPE gumboot and rain boot machine — one- or two-colour, servo-driven, with automatic mould handling.

Materials

PVCTPE

Variants

612A · 614A · 616H

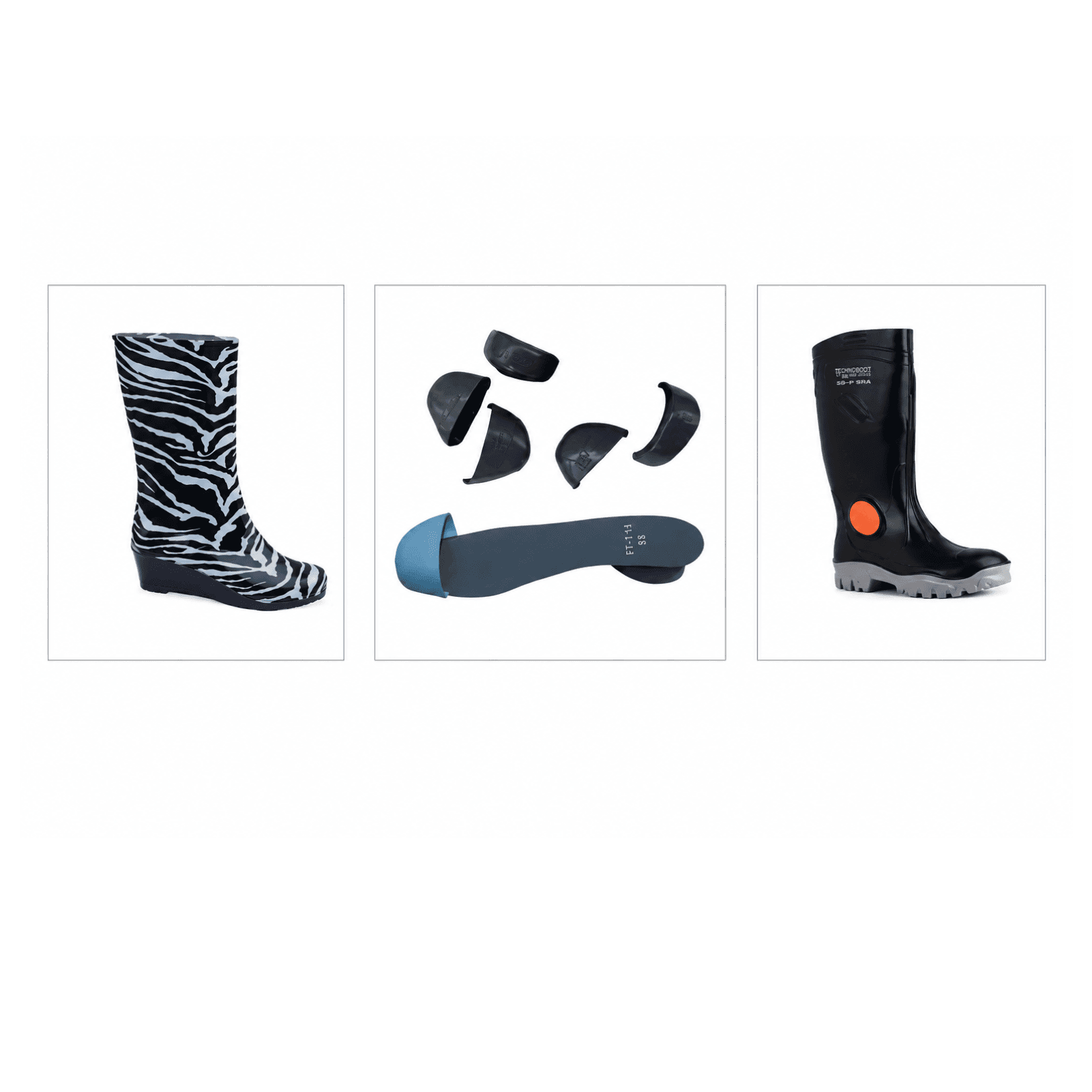

What this machine produces

Produces 1-colour or 2-colour PVC rain boots and gumboots

Easy to operate with HMI touchscreen & PLC control

Servo motors cut electricity bills by up to 40%

Digital measurement ensures precise, accurate control

Simple design that even beginners can run easily

Automatic mechanical arm opens and closes the mould — less labour, more output

Technical specifications for the TGB across available variants.

Specification	Unit	612A612A	614A614A	616H616H
Raw Material		PVC	PVC	PVC
Work Station Number	station	12	14	16
Injection Capacity (max)	cm³/cc	1270-770	1270-770	1955-880
Injection Hydraulic	kg/cm²	0-150, 0-120	0-150, 0-120	0-150, 0-120
Heating Power	kw	15+13	15+13	15+13
Limit of Temperature	point	5	5	5
Screw Speed	r.p.m	0-150	0-150	0-150
Screw Diameter	mm	Ø90, Ø70	Ø90, Ø70	Ø90, Ø75
Motor Power	kw	22, 18.5	22, 18.5	22, 18.5
Clamping Force	T	250	250	250
Mould Size (max)	mm	680420200	680420200	680420200
Machine Size	mm	635052602460	675052602460	685060002460
Machine Weight	kg	19000	19000	20000

Specifications subject to change without notice. Custom configurations available on request.

Ideal for unit soles plus welt & insert types. A bottom sliding plate gives easy mould access for welt/insert application.
