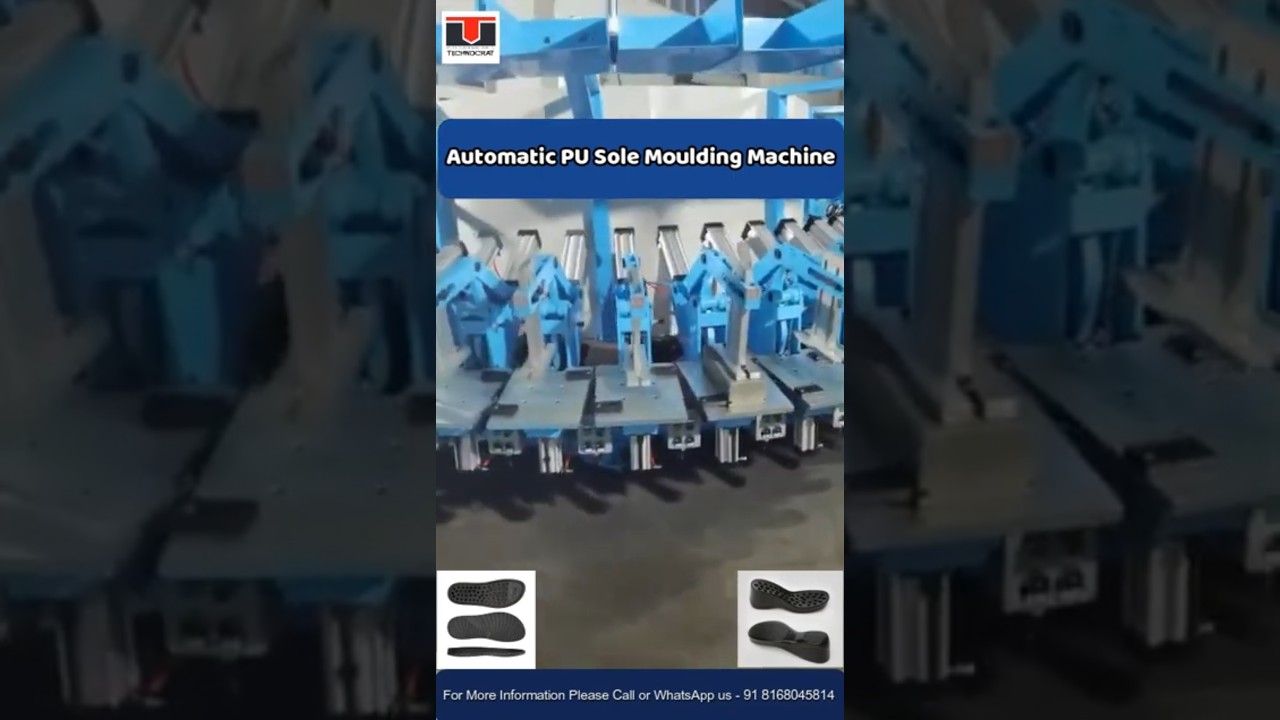

TCPU-1 (2A+2B)

Four-Tank PU Pouring Machine · Single / Double Density

Fully automatic four-tank PU pouring system with robot arm, raw-material oven, chiller and colouring machine.

Materials

Variants

Main Parameters

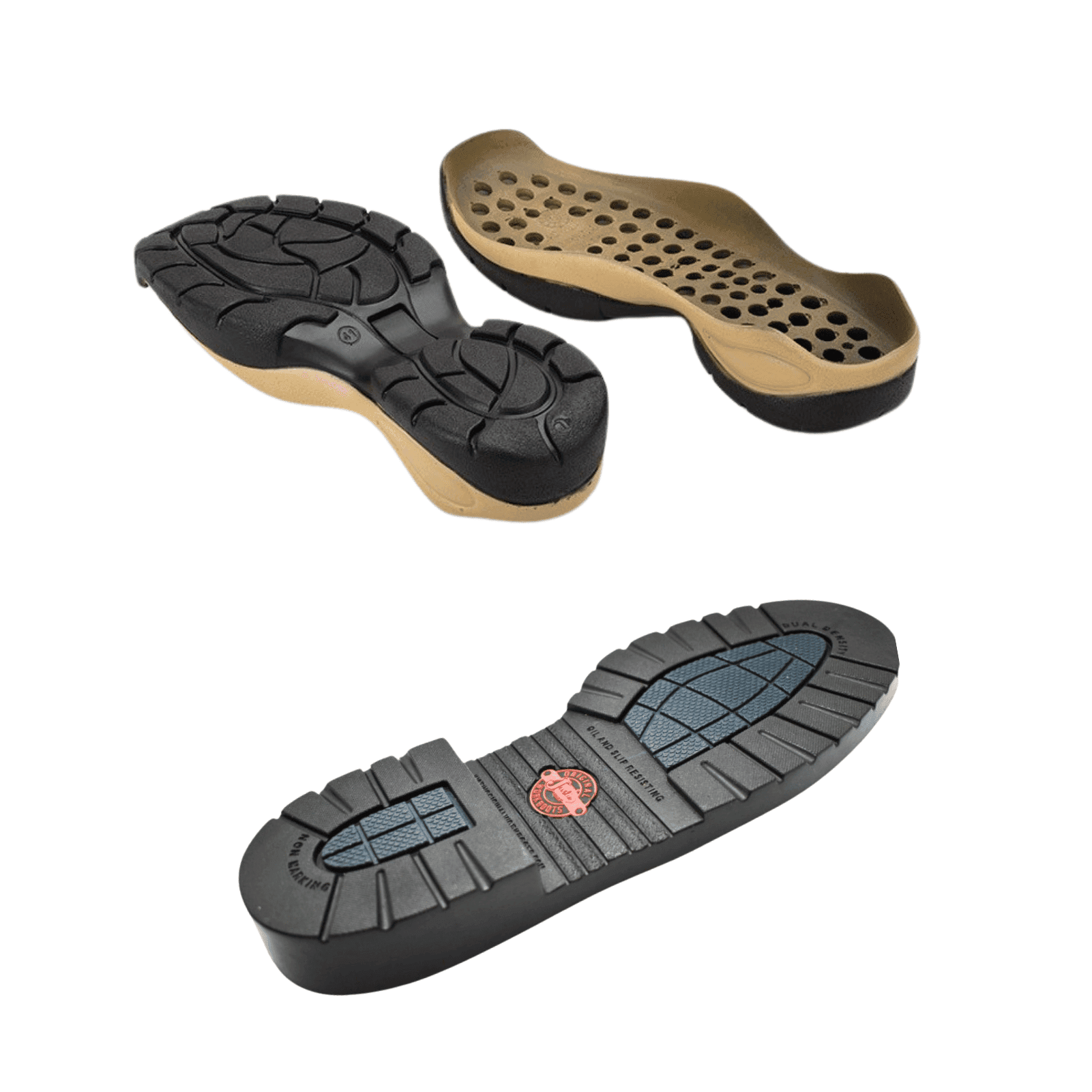

What this machine produces

Robot arm automation

Raw-material oven · Chiller · Colouring machine

Single / double density pouring

2A2B four-tank pouring head

Technical specifications for the TCPU-1 (2A+2B) .

Specification	Unit	Main ParametersTCPU1-2A2B
Electricity & Power		3PH/415V/50HZ 17KW
Air Supply		0.4-0.8 MPA
Usage		Various products of PU material
Flow	g/s	50-150
Mixing Ratio		A:B = 100:50-150
Material Viscosity (POLY)	MPA.S	500~5000
Material Viscosity (ISO)	MPA.S	500~3000
Measurement Method		Weight, 0.1-999.9 g
Pouring Head		2A2B (Four tanks), RPM 8600 r/min
Raw Material Tanks		POLY 1/2 & ISO 1/2, 250L each (1.5KW), SU304 SS
Rotary Table Stations		40 stations, expandable up to 120
Diameter of Rotary Table	mm	5200
Mould Heating		Electrical, 40 × 0.3KW
Oven Power		3PH/415V/50HZ 9KW

Specifications subject to change without notice. Custom configurations available on request.
