TECHNICA PV-2
PVC Paver Block Mould Making Machine — High Output
Higher-output double-capacity PVC paver block mould making machine — double the heating, motor and production of the PV-1, for factories scaling paver mould volume while keeping the same raw-PVC material economy.

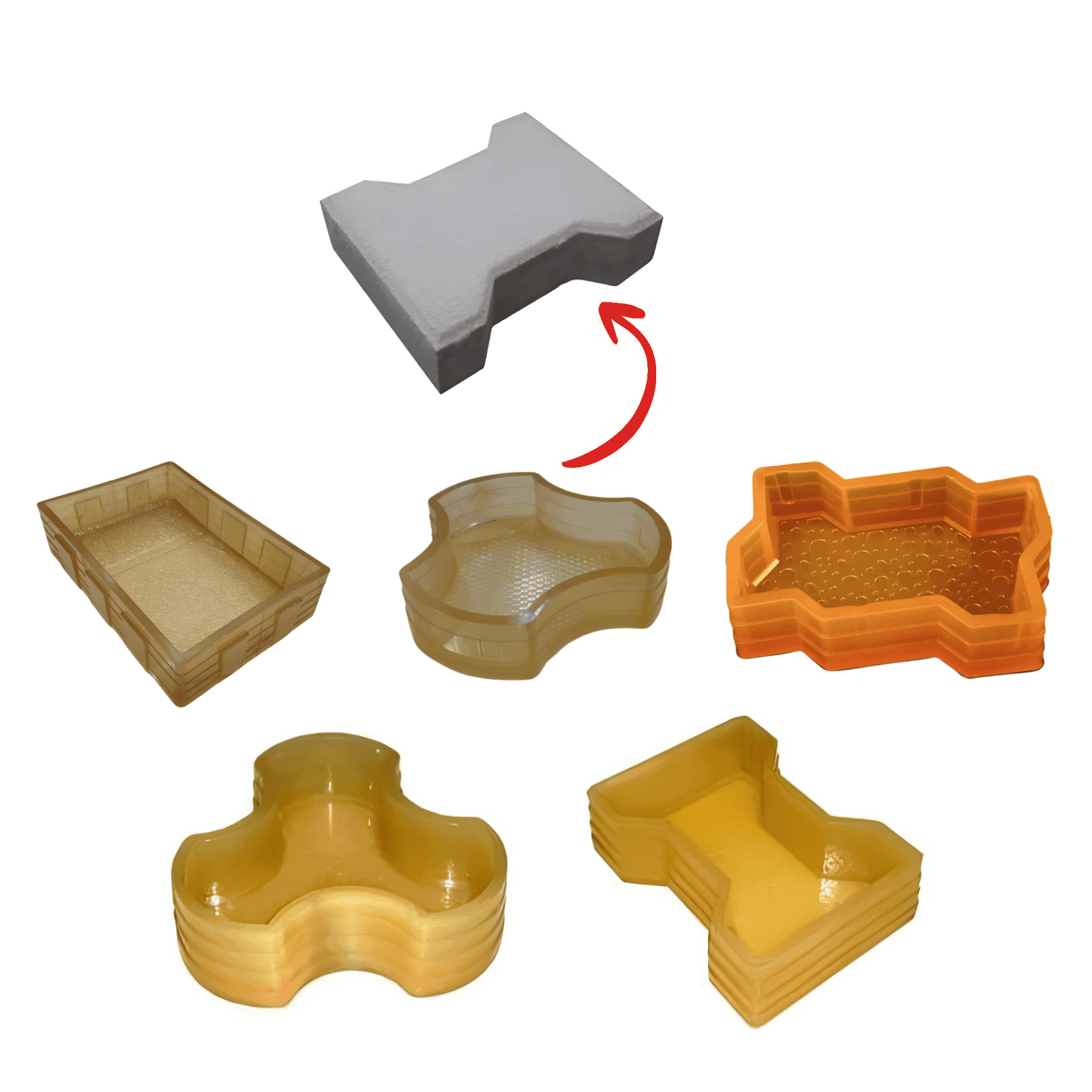

What this machine produces

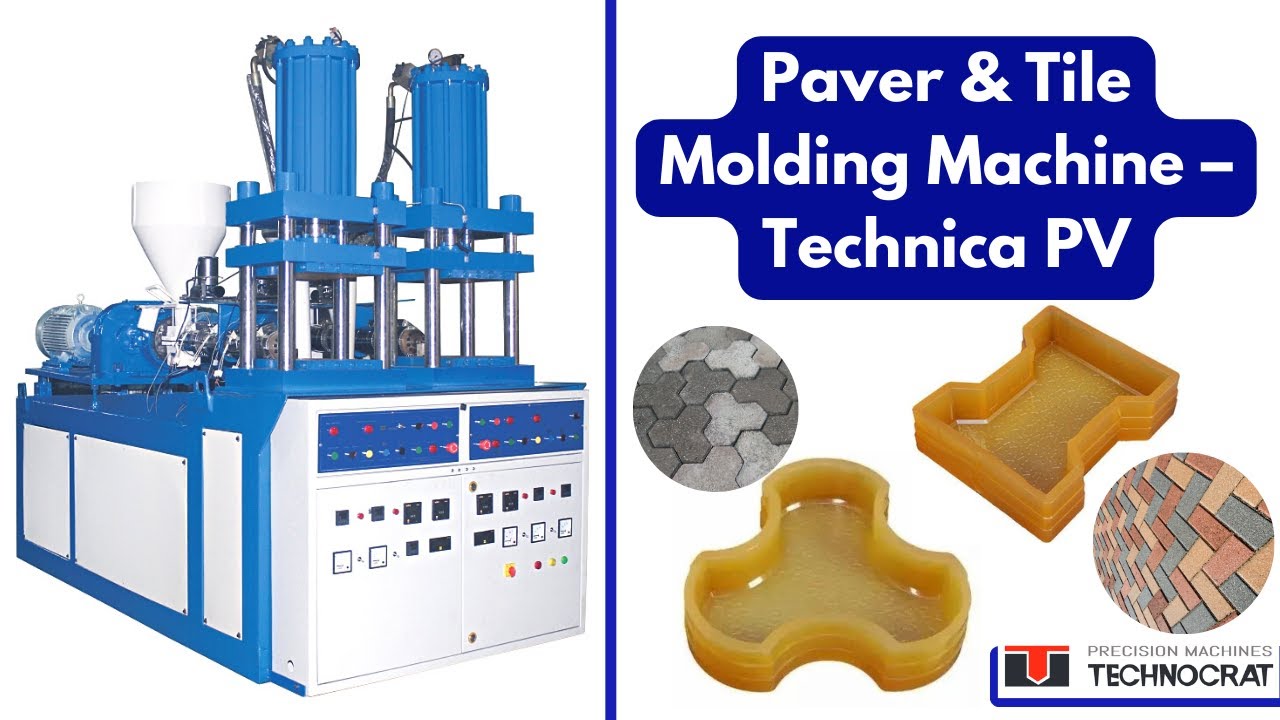

Watch it run
Key features
Full specifications
Technical specifications for the TECHNICA PV-2 .
| Specification | Unit | PV2Technica PV2 |
|---|---|---|
| Screw Dia | Mm | 90 |
| Heating Load | Kw | 12 |
| Electrical Motor | Kw | 35.5 |
| Total Connected Load | Kw | 47.5 |
| Clamping Force | Ton | 60 |
| Production Capacity | Pcs./Hour | 30-60 |
| Standard Mould Size | MM | 600x600 |
| Net Weight | Kg | 5500 |
| Machine Dimensions | MM | 1800(W)X3700(L)X2850(H) |
| Oil Capacity | LTR | 420 |
Specifications subject to change without notice. Custom configurations available on request.
