TechLast

Shoe Last Moulding Machine

High-production machine to manufacture shoe lasts with superior plasticizing and improved capacity.

Materials

Variants

Specification

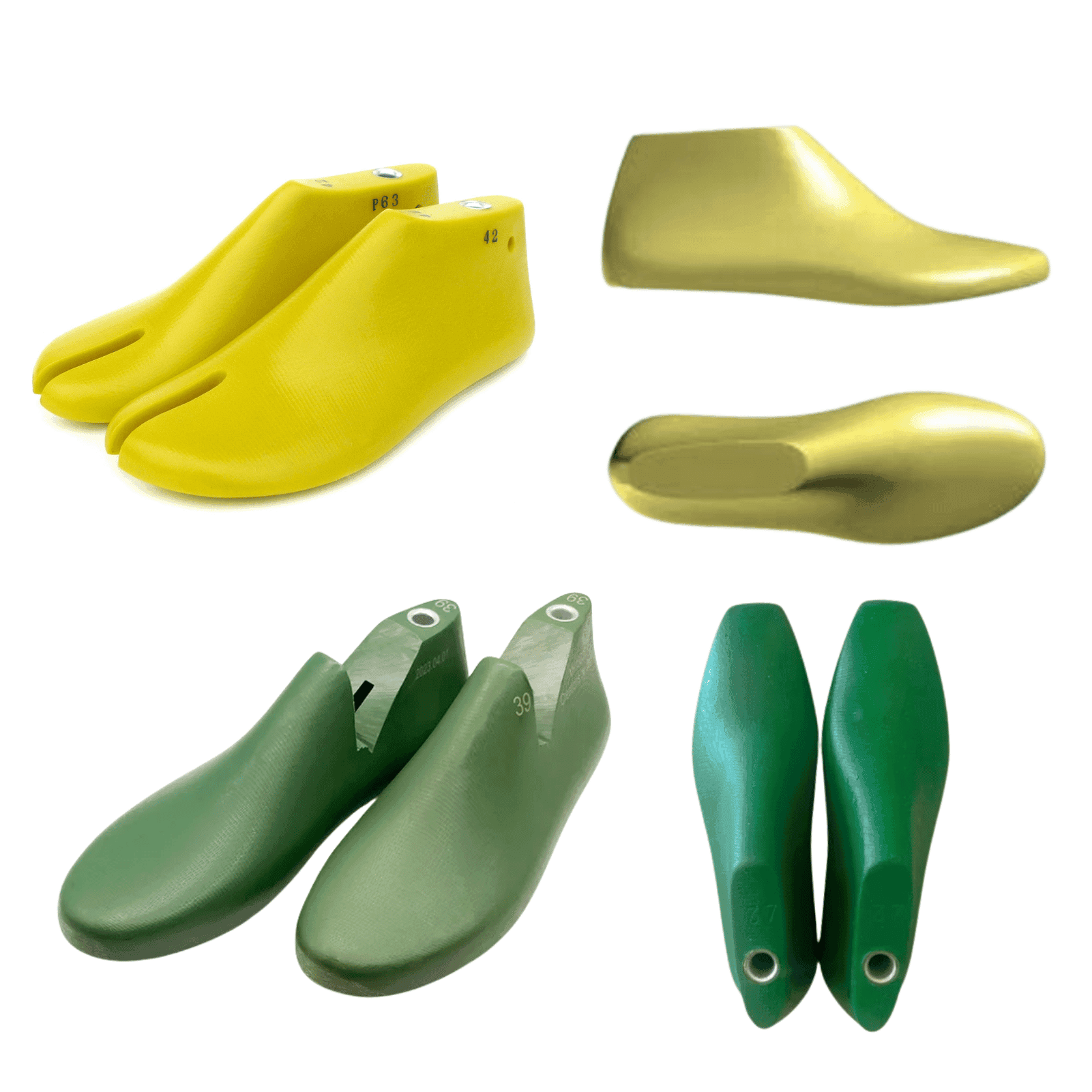

What this machine produces

Soles produced by the TechLast Shoe Last Moulding Machine

Watch it run

Key features

Innovative design — superior plasticizing & capacity

PLC controlled

AC drives tune screw speed to material

Full specifications

Technical specifications for the TechLast .

Specification	Unit	SpecificationTechLast
Max. Weight	Gms	8000
Output Per Hour	Kg	130
Hydraulic Pump Motor	Hp/Kw	10/7.46
Heating Capacity Power	KW	35
Heating Zone	No.	5
Screw Diameter	Mm	120
Main Motor Electric Power	Hp/Kw	30/22.37
Oil Tank Capacity	L	210
PLC		SCHNEIDER
Total Power	Kw	57.5
Machine Dimensions (LxWxH)	Mm	4800X1600X1300
Machine Weight	Kg	5800

Specifications subject to change without notice. Custom configurations available on request.
