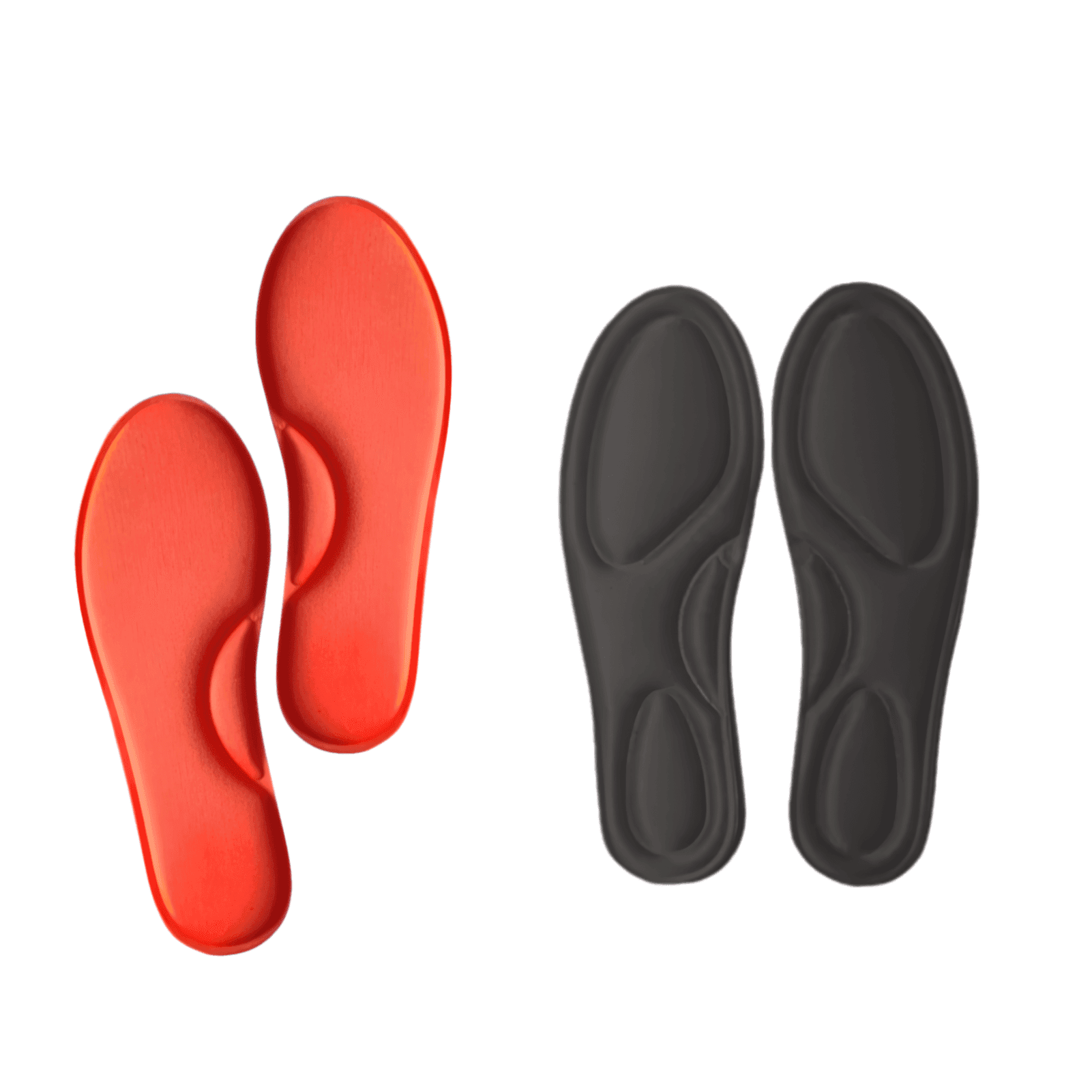

What this machine produces
Watch it run
Key features
15% more production — faster opening and closing speed
Pillar-type design needs less hydraulic force, so it draws less current
Even, reliable heating — cartridge heaters in CNC-cut aluminium plates
Built-in heat exchanger keeps the machine running cool and efficient
Full specifications
Technical specifications for the TIP-6 .
| Specification | Unit | 6 StationTIP-6 |
|---|---|---|
| Clamping Force | Tons | 20 |
| Working Size | MM | 480 x 380 |
| Motor Load | HP | 5 |
| Electrical Heating | KW | 18 |
| Production | Pairs/Hr | Up to 1500 |
| Oil Capacity | Ltrs | 420 |
| Machine Dimensions | MM | 4300x850x1800 |
| Number of Stations | 6 |
Specifications subject to change without notice. Custom configurations available on request.
