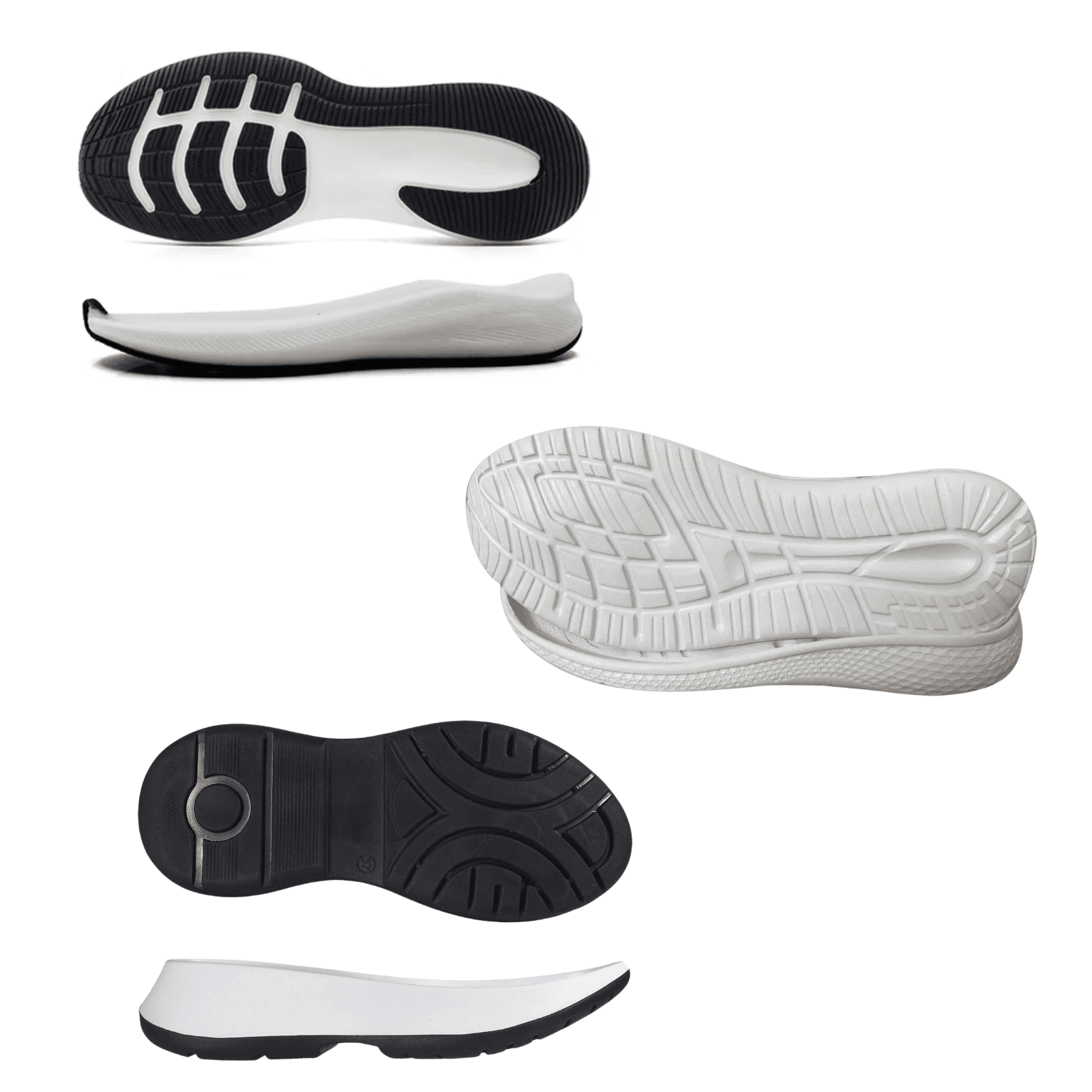

What this machine produces

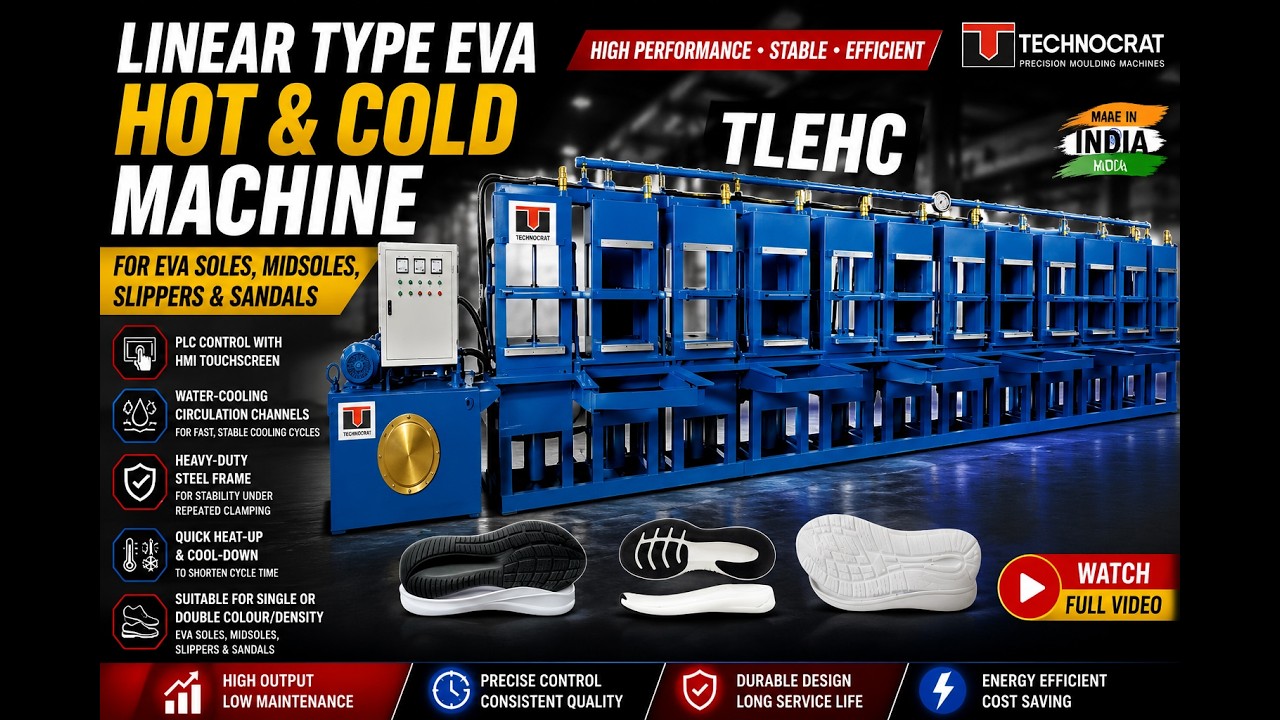

Watch it run
Key features
PLC control with HMI touchscreen
Water-cooling circulation channels for fast, stable cooling cycles
Heavy-duty steel frame for stability under repeated clamping
Quick heat-up and cool-down to shorten cycle time
Suitable for single or double colour/density EVA soles, midsoles, slippers and sandals
Full specifications
Technical specifications for the TLE-HC across available variants.
| Specification | Unit | 8 Station8 Station | 12 Station12 Station |
|---|---|---|---|
| Raw Material | EVA | EVA | |
| Work Station Number | 8 | 12 | |
| Working Plate Size | mm | 500 x 420 | 500 x 420 |
| Layer Distance | mm | 260 | 260 |
| Clamping Force | T | 35 | 35 |
| Heating Method | Electricity | Electricity | |
| Motor Power | kW | 7.5 | 7.5 |
| Electricity Load | kw | 54 | 81 |
| Cooling Method | Room temperature water | Room temperature water | |
| Machine Size | mm | 6000×2100×2050 | 11000×2100×2050 |
| Gross Weight | kg | 20,800 | 30,000 |
Specifications subject to change without notice. Custom configurations available on request.
